  • Sale
  • $850.00

This is a pre-order item, we are planning to be shipping in 12-16 weeks after pre-orders close.

Product brought to you by our friends at @dekadent_garage. If you have any questions please contact them on their Instagram page.

https://www.instagram.com/dekadent_garage?dlrf=d25ubWFoMXZxcnM4



For offroad use ONLY

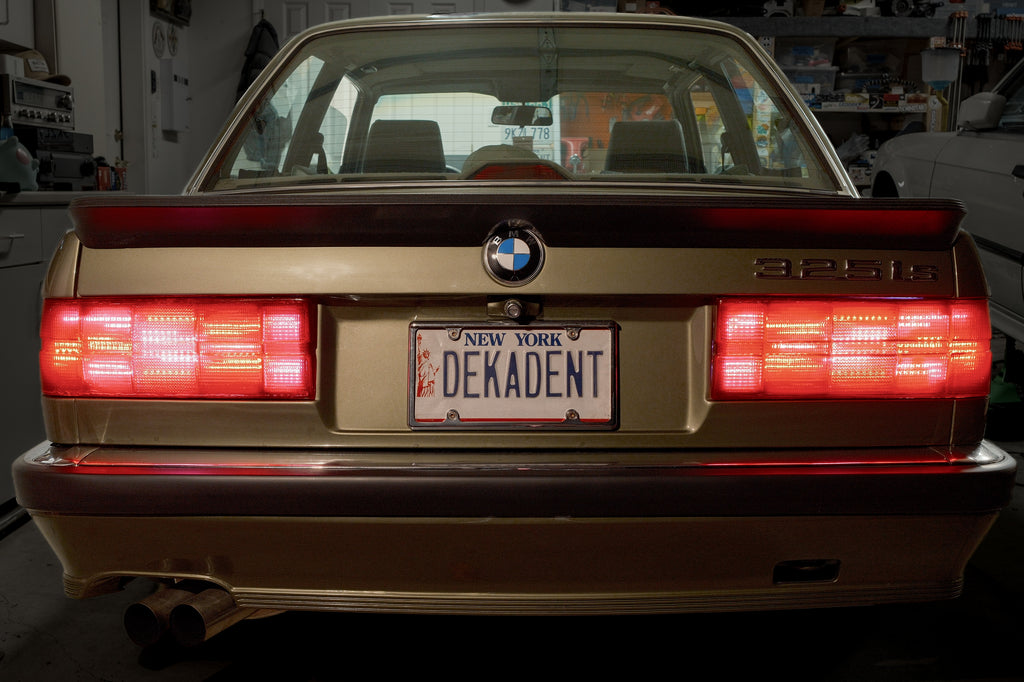

These lights produce brighter output than the stock tails, while giving you complete control over each individual pixel for function and effects.

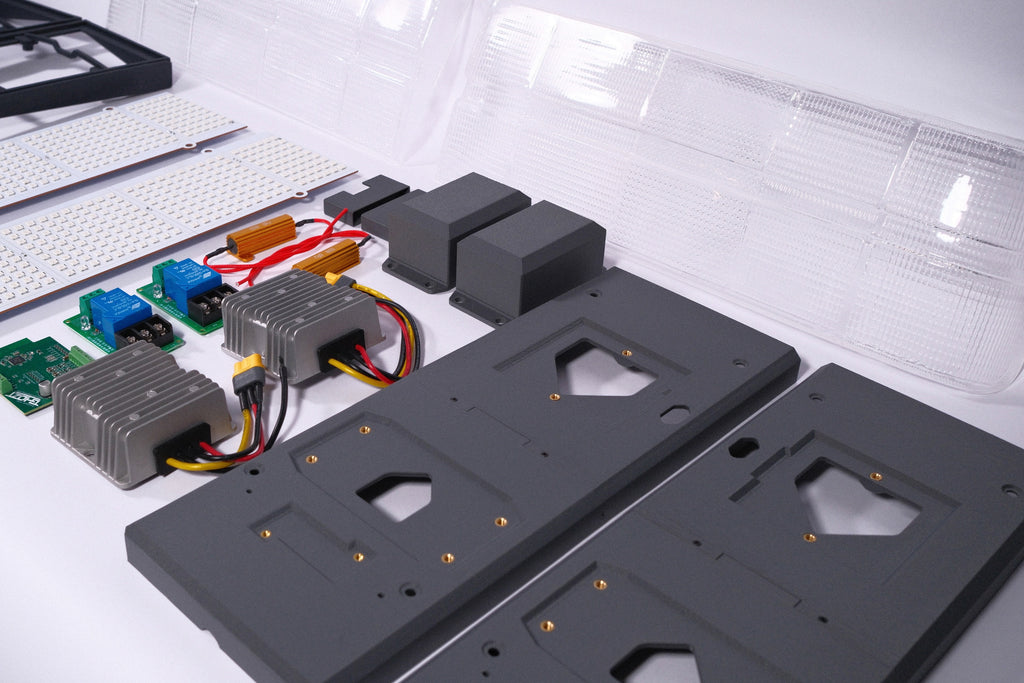

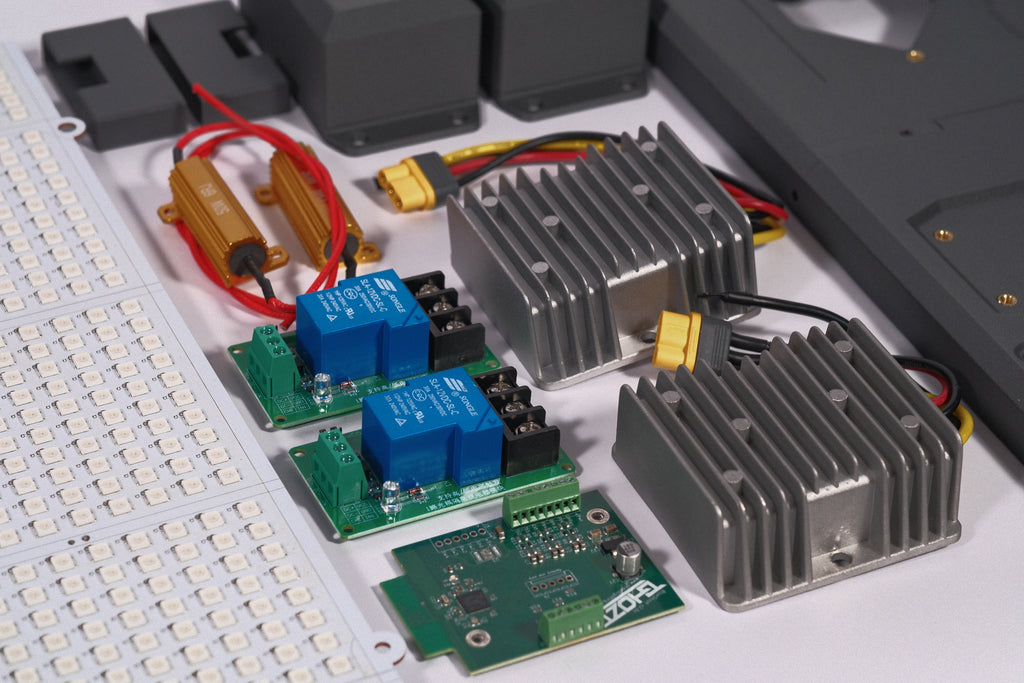

 What's included:

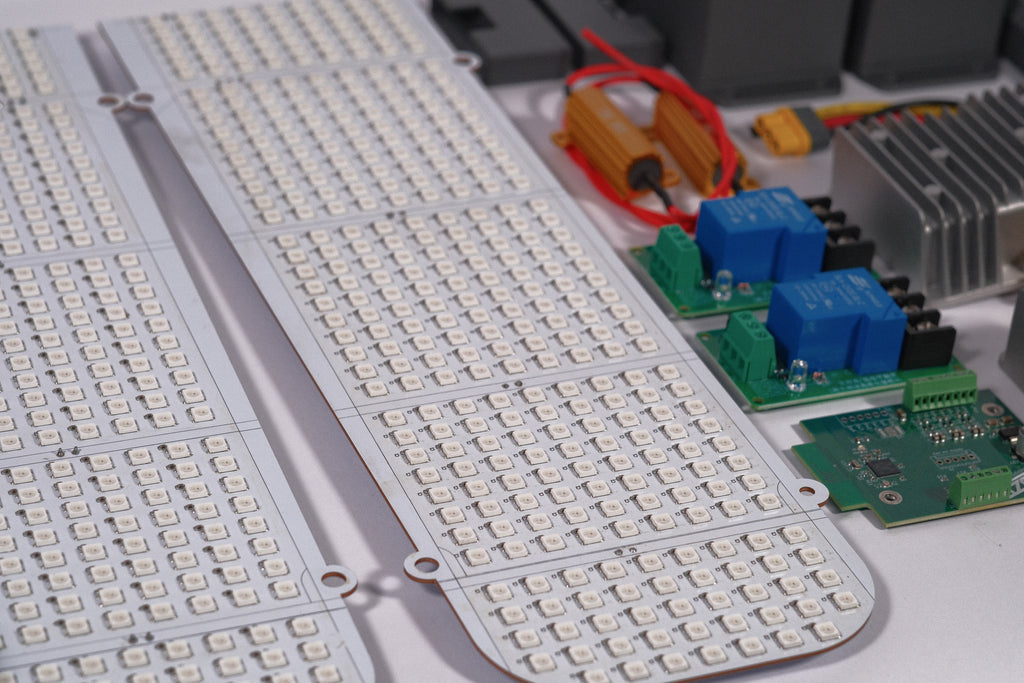

  • Custom PCBs - 349 individually addressable WS2812B LEDs per side.

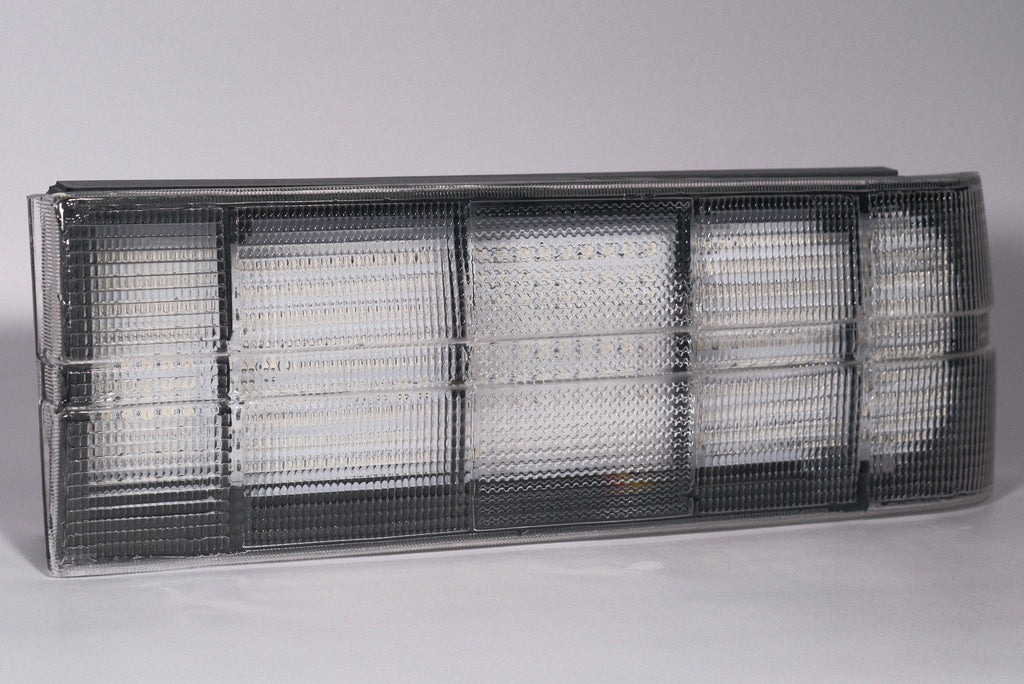

  • Clear lenses - tint them yourself, or not!

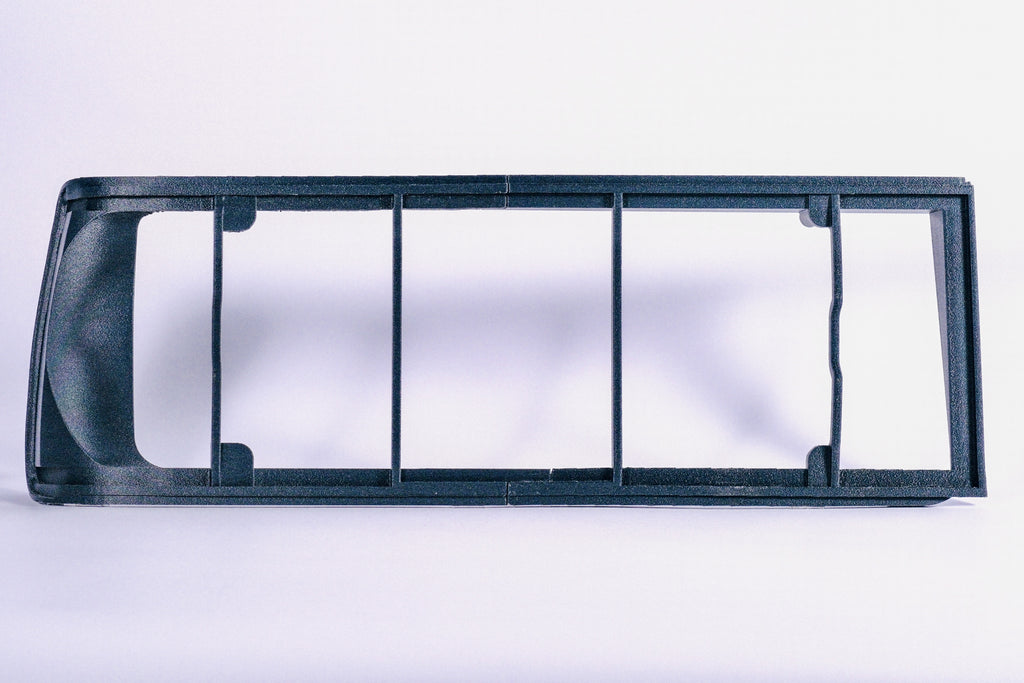

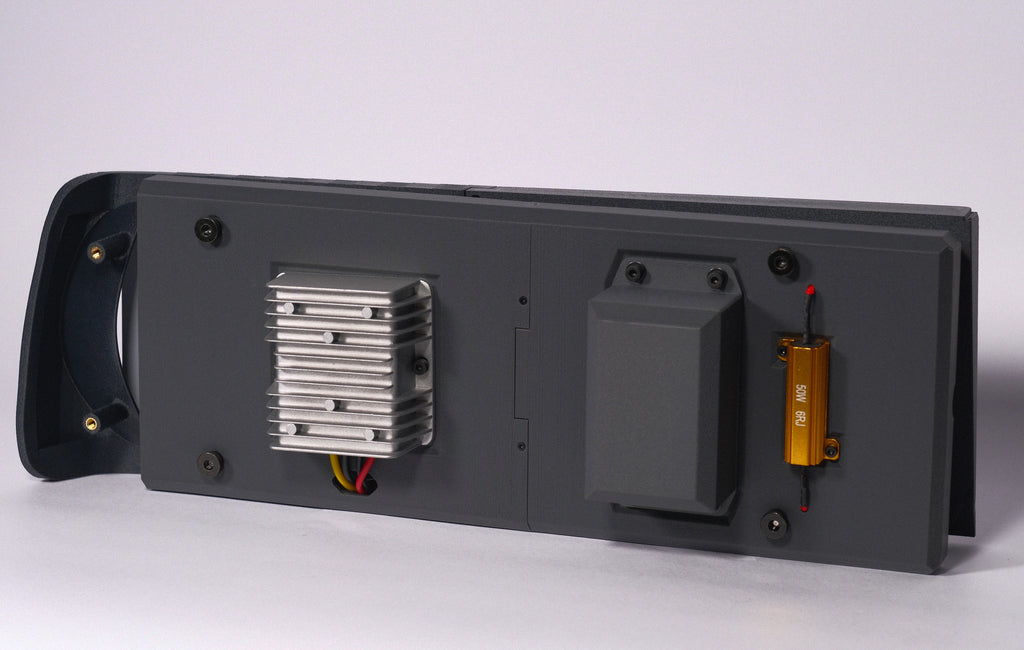

  • Custom tail light housings - no cores required. 3D printed in ASA-GF.

  • Backing covers. 3D printed in ASA-GF.

  • Controller - configurable on mobile app.

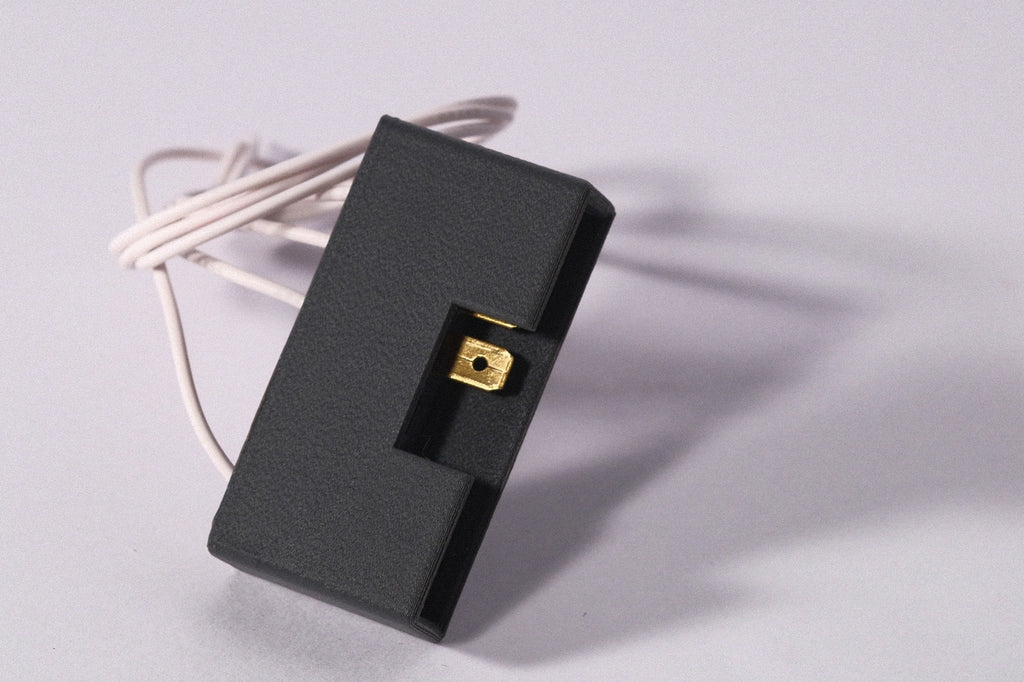

  • Chassis connectors (wiring included) - plugs into existing trunk wiring.

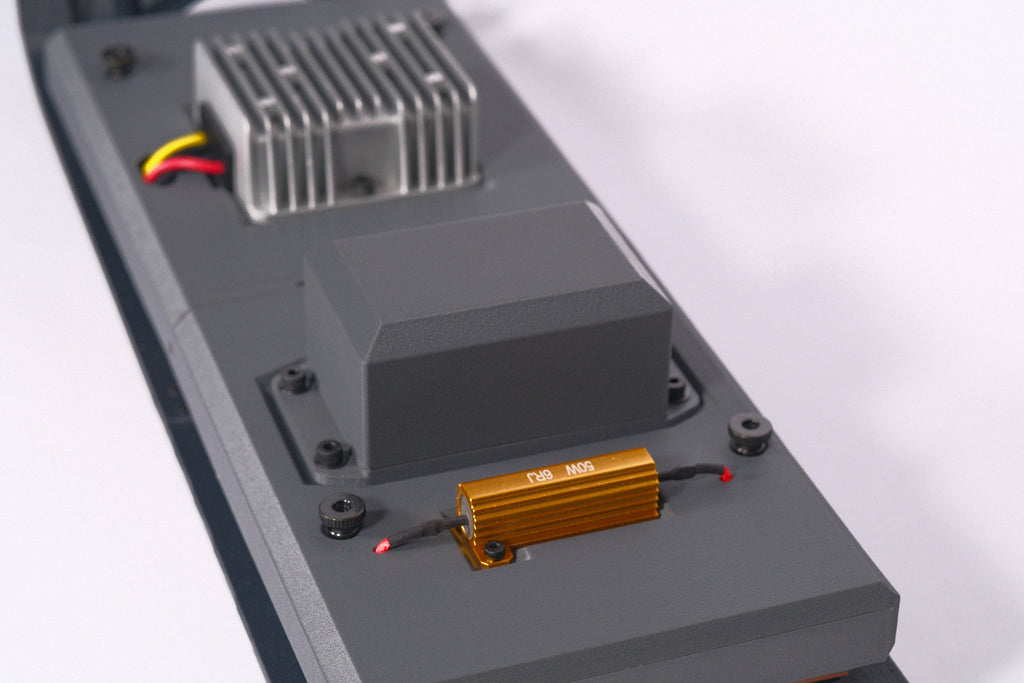

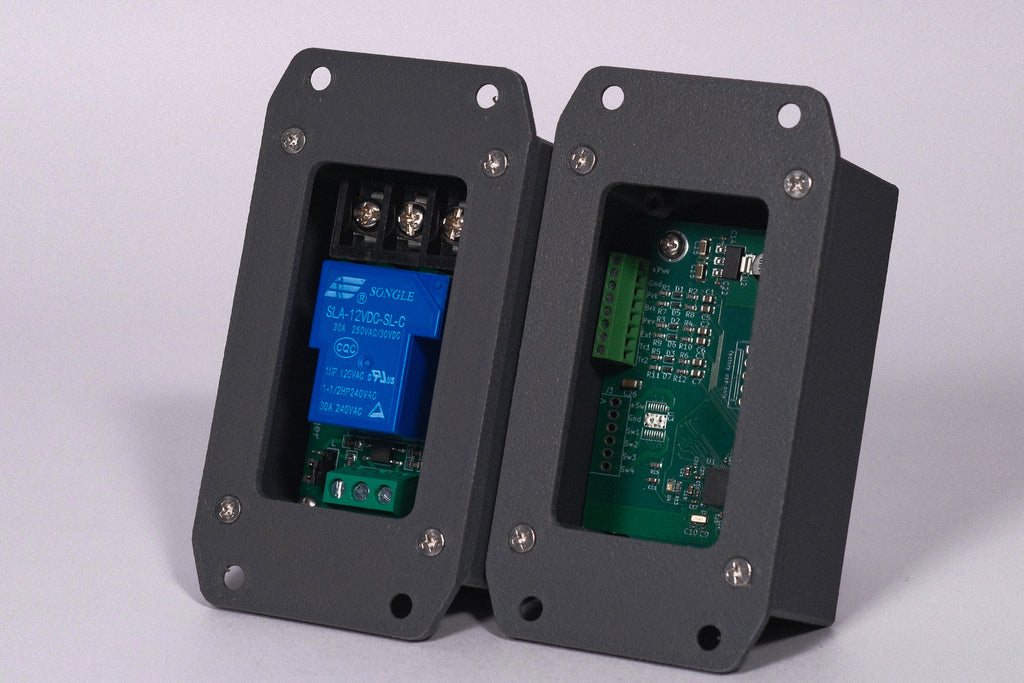

  • Supporting electronics - buck converters and relays.

  • Installation hardware

How do they work?

Lights retain their original functions - parking, brake, turn, and reverse inputs are wired into a controller (BlueGhozt) via included chassis harness connectors. These functions can all be configured/customized on an app. Choose what sections light up for braking, sequential turns, etc.

On top of that, the LEDs on each side can be programmed with custom animations. The app is simple to use - you don't need to have any experience. The animations can be activated from your phone, or from a 12V trigger.

How much assembly is involved?

  1. Lens adjustment - some minor shaping with a heat gun + sander may be necessary to get the best fit, these are hand made.

  2. Tint the lens to your liking.

  3. Glue the lens to the housing.

  4. Wire and install. See video linked below for installation info (formal instructions coming soon)

Options:

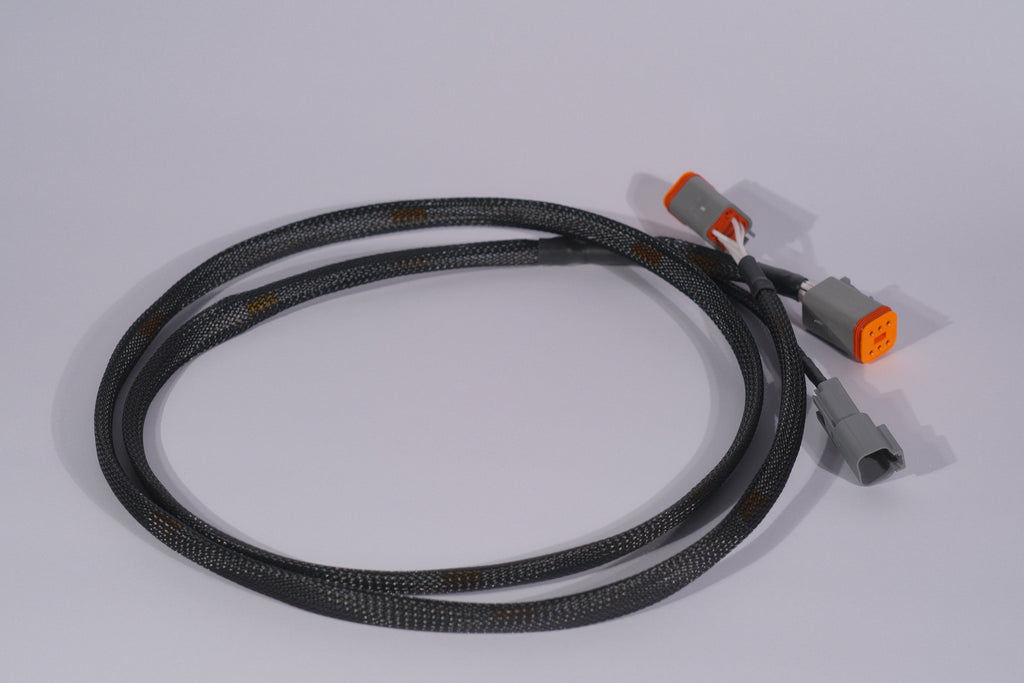

Harness connects the two lights together (controller is housed on one side only) and to the battery. Made with premium TXL wiring and DT connectors.

If you're comfortable with electronics and wiring, or have some type of custom wiring setup already, you could skip the harness and make your own - this option will include flying leads.
